Description

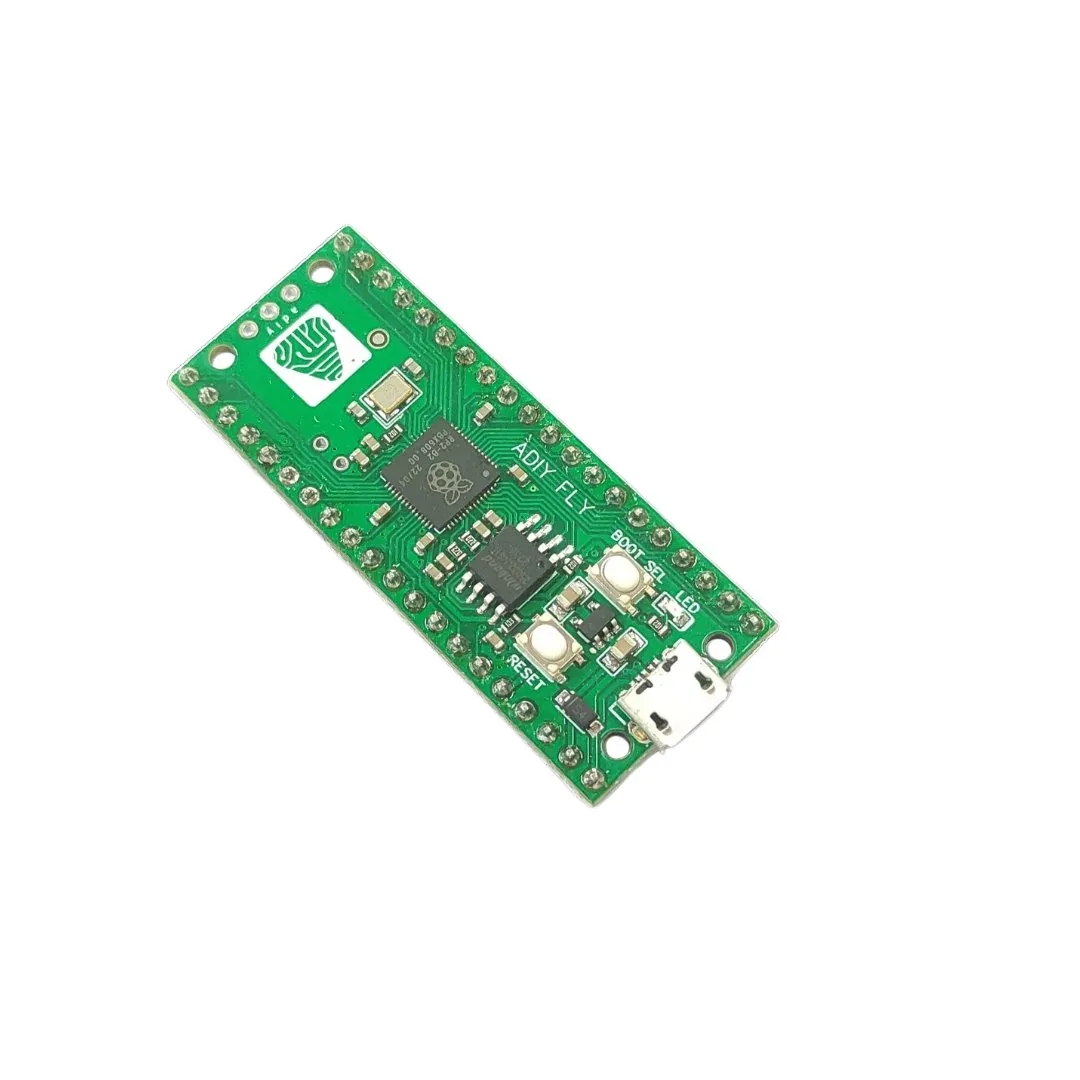

ADIY FLY basic comes with large on-chip memory, symmetric dual-core processor complex, deterministic bus fabric, and a rich peripheral set augmented with a unique Programmable I/O (PIO) subsystem, RP2040 provides professional users with unrivaled power and flexibility. ADIY FLY pairs RP2040 with 4MB of Flash memory, and a power supply chip supporting input voltages from 3.3-5.5V. It provides 27 GPIO pins, 4 of which can function as analog inputs, on 2.54mm-pitch through-hole pads. The RESET button on ADIY FLY makes the usage of the module easy.
RP2040 is manufactured on a modern 40nm process node, delivering high performance, low dynamic power consumption, and low leakage, with a variety of low-power modes to support extended-duration operation on battery power.
-
Pico RP2040 Board – ADIY FLY is the debut microcontroller from ADIY.
Advantages: PICO RP2040 Board
- Cheap and great for first-timers
- Great for real-time applications
- Low power consumption
ADIY FLY basic comes with a large on-chip memory, symmetric dual-core processor complex, deterministic bus fabric, and rich peripheral set augmented with a unique Programmable I/O (PIO) subsystem, RP2040 provides professional users with unrivaled power and flexibility. ADIY FLY pairs RP2040 with 4MB of Flash memory, and a power supply chip supporting input voltages from 3.3-5.5V. It provides 27 GPIO pins, 4 of which can function as analog inputs, on 2.54mm-pitch through-hole pads. The RESET button on ADIY FLY makes the usage of the module easy.
RP2040 is manufactured on a modern 40nm process node, delivering high performance, low dynamic power consumption, and low leakage, with a variety of low-power modes to support extended-duration operation on battery power.
ADIY Fly has been designed to be a low-cost yet flexible development platform for RP2040, with the following key features:
- Pin to Pin as Compatible as Raspberry Pi Pico
- With RESET Button
- With 4MB FLASH memory
- Dual-core Arm Cortex-M0 processor, flexible clock running up to 133 MHz
- 264KB on-chip SRAM
- DMA controller
- Accelerated integer and floating-point libraries on-chip
- Drag-and-drop programming using mass storage over USB
- 2 on-chip PLLs to generate USB and core clocks
- 27 GPIO pins, 4 of which can be used as analog inputs
- 2×UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
- 1×USB 1.1 controller and PHY, with host and device support
- Accurate on-chip clock, Temperature sensor
- 8×Programmable I/O (PIO) state machines for custom peripheral support
- High quality, low cost, high availability
- Simple yet highly flexible power supply architecture
- Various options for easily powering the unit from micro-USB, external supplies, or batteries
Specifications: Pico RP2040 Board
- Form factor: 21 mm × 51 mm
- CPU: Dual-core Arm Cortex-M0 @ 133MHz
- Memory: 264KB on-chip SRAM; 4MB on-board Flash
- Interfacing: 27 GPIO pins, including 4 analog inputs
- Peripherals :
– 2 × UART.
– 2 × SPI controllers
– 2 × I2C controllers
– 16 × PWM channels
– 1 × USB 1.1 controller and PHY, with host and Device support
– 8 × PIO state machines - Input power: 3.3–5.5V DC
- RESET button: Included
Peripherals: Pico RP2040 Board
- 2 UARTs
- 2 SPI controllers
- 2 I2C controllers
- 16 PWM channels
- USB 1.1 controller and PHY, with host and device support
- 8 PIO state machines
