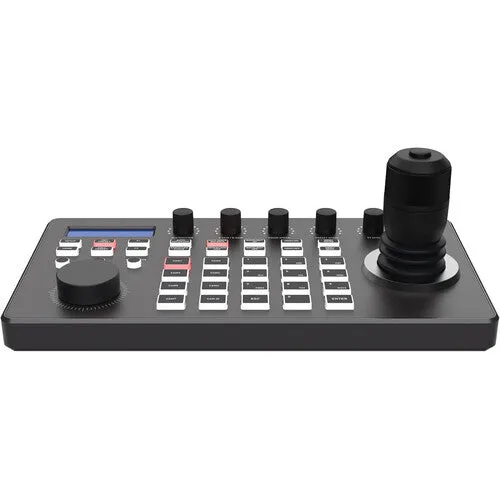

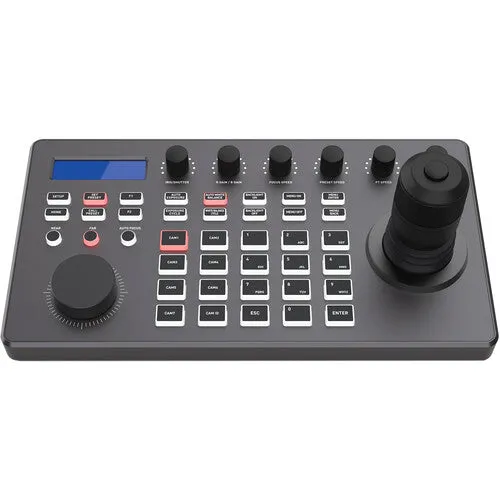

The DVDO IP PTZ Camera Controller with Joystick features an integrated LCD screen, multiple knobs, and several backlit buttons for direct camera selections, and a 4D joystick with variable speed. The controller can manage up to 255 PTZ cameras through IP and/or serial connections. Its controls include Pan, Tilt, Zoom, PTZ speed, Focus, Iris, White Balance, and R/B color correction. The web-based GUI simplifies camera setup and configuration, and the controller can be powered either by an external power supply or via Power over Ethernet (PoE).
Features
- PTZ Camera Controller with LCD Screen
- Controls up to 255 PTZ Cameras
- Supports NDI/ONVIF/VISCA/Pelco Protocols
- 4D Joystick with Variable Speed
- Web-Based GUI for Setup & Configuration
Specifications

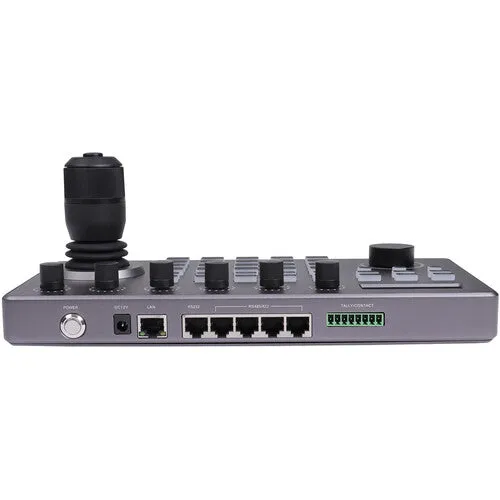

- Controls up to 255 PTZ cameras over IP and/or serial (RS232/RS422/RS485) within the same network
- Supports NDI, ONVIF, Visca & Pelco protocols and auto-discovery
- 4D joystick (up/down, left/right, zoom in/out, confirm) with variable speed for Pan, Tilt and Zoom controls
- Additional circular knob for zoom adjustment
- 7 buttons for direct camera selections
- Other controls include PTZ speed, Focus, Iris, White Balance and R/B color correction
- Web-based GUI for easy setup and configuration
- Tally control function
- Two power options: PoE or external 12V power supply
