Please note that this product is available on a 2-3 week lead time.

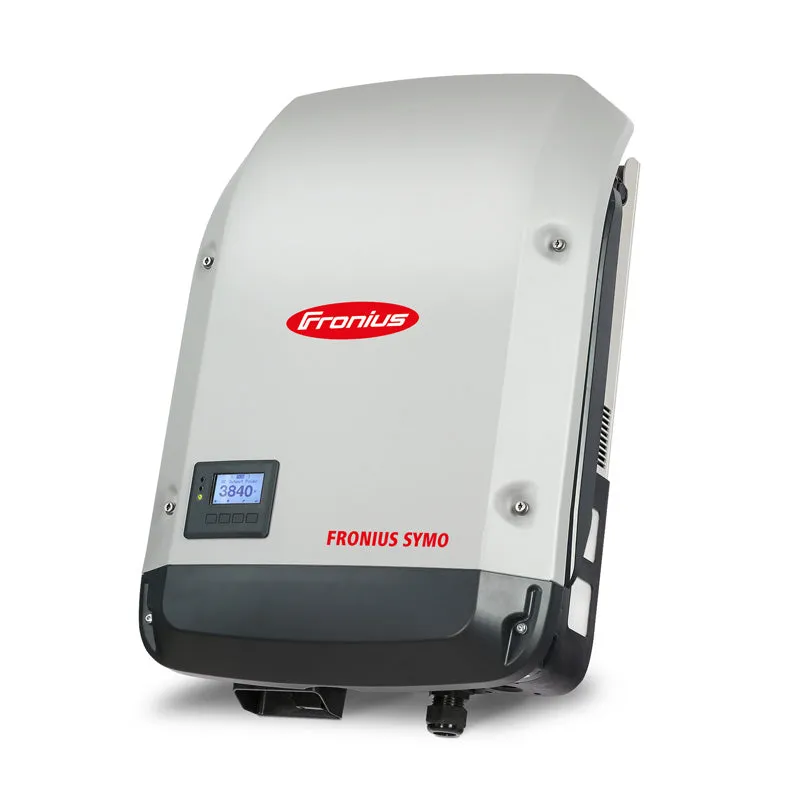

Owing to the SuperFlex Design, the Fronius Symo is the perfect answer to irregularly shaped or multi-oriented roofs. The standard interface to the internet via WLAN or Ethernet and the ease of integration of third-party components make the Fronius Symo one of the most communicative inverters on the market. Furthermore, the meter interface permits dynamic feed-in management and a clear visualisation of the consumption overview.

Features.
 • Dynamic Peak Manager.
 • SnapINverter technology.
 • SuperFlex Design.
 • Integrated data communication.
 • PC board replacement process.
 • Smart Grid Ready.

Technical Specifications.

Input Data.
 • Max. input current (Idc max) - 16.0 A.
 • Max. array short circuit current - 24.0 A.
 • Min. input voltage (Udc min) - 150 V.
 • Feed-in start voltage (Udc start) - 200 V.
 • Nominal input voltage (Udc,r) - 595 V.
 • Max. input voltage (Udc max) - 1000 V.
 • MPP voltage range (Umpp min – Umpp max) - 195 V - 800 V.
 • Number of MPP trackers - 2.
 • Number of DC connections - 2 2.

Output Data.
 • AC nominal output (Pac,r) - 6000 W / 6 kW.
 • Max. output power - 6000 VA.
 • Max. output current (Iac max) - 9.6 A.
 • Grid connection (voltage range) - 3-NPE 400 V / 230 V or 3~NPE 380 V / 220 V ( 20 % / -30 %)
 • Frequency (frequency range) - 50 Hz / 60 Hz (45 - 65 Hz).
 • Total harmonic distortion - < 3 %.
 • Power factor (cos φac,r) - 0.85 - 1 ind. / cap.

General Data.
 • Dimensions (height x width x depth) - 645 x 431 x 204 mm.
 • Weight - 19.9 kg.
 • Degree of protection - IP 65.
 • Protection class - 1.
 • Overvoltage category (DC / AC) 2) - 2 / 3.
 • Night-time consumption - < 1 W.
 • Inverter concept - Transformerless.
 • Cooling - Regulated air cooling.
 • Installation - Indoor and outdoor installation.
 • Ambient temperature range - -25 - >60 °C.
 • Permitted humidity - 0 to 100 %.
 • Max. altitude - 2,000 m / 3,400 m (unrestricted / restricted voltage range).
 • DC connection technology - 4x DC and 4x DC- Screw terminals 2.5 - 16 mm².
 • AC connection technology - 4x DC and 4x DC- Screw terminals 2.5 - 16 mm².
 • Certificates and compliance with standards - ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777, CEI 0-21.

Effiecency.
 • Max. efficiency - 98.0 %.
 • European efficiency (ηEU) - 97.3 %.
 • MPP adaptation efficiency - > 99.9 %.

Protective Devices.
 • DC insulation measurement - Yes.
 • Overload behaviour - Operating point shift. Power limitation.
 • DC disconnector - Yes.

Interfaces.
 • WLAN / Ethernet LAN - Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON).
 • 6 inputs and 4 digital in/out - Interface to ripple control receiver.
 • USB (A socket) - Datalogging, inverter update via USB flash drive.
 • 2x RS422 (RJ45 socket) - Fronius Solar Net.
 • Signalling output - Energy management (potential-free relay output).
 • Datalogger and Webserver - Included.
 • External input - S0-Meter Interface / Input for overvoltage protection.
 • RS485 - Modbus RTU SunSpec or meter connection.
